ECM | Mechanika Max Heat Exchanger System with Rotary Pump Espresso Machine

ECM | Mechanika Max Heat Exchanger System with Rotary Pump Espresso Machine

Regular price R 70,100.00
Regular price Sale price R 70,100.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
Prices exclude, if applicable: product training, water filtration, installation (area dependent within the borders of South Africa) and delivery, unless otherwise stated.
Commercial Use Machines: Specific to, but not limited to, 2Gr & 3Gr Traditional Espresso Machines: Installation must be done by a qualified technician to ensure warranty T&Cs.
Quantity

Product details and specifications

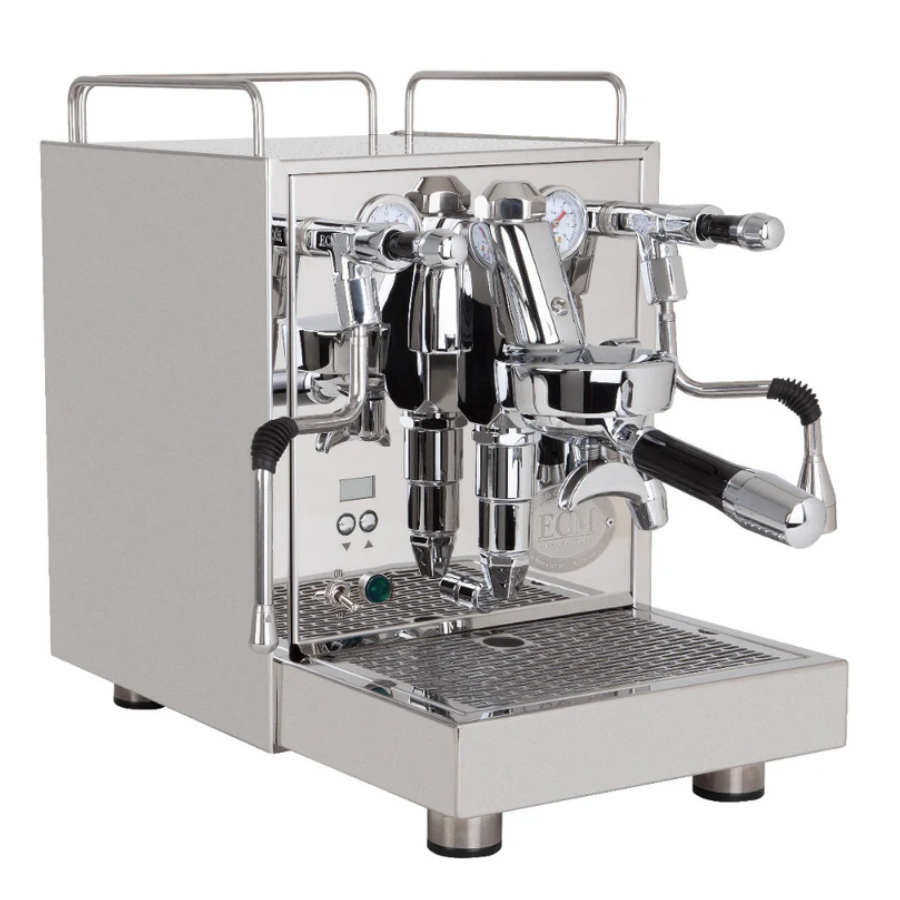

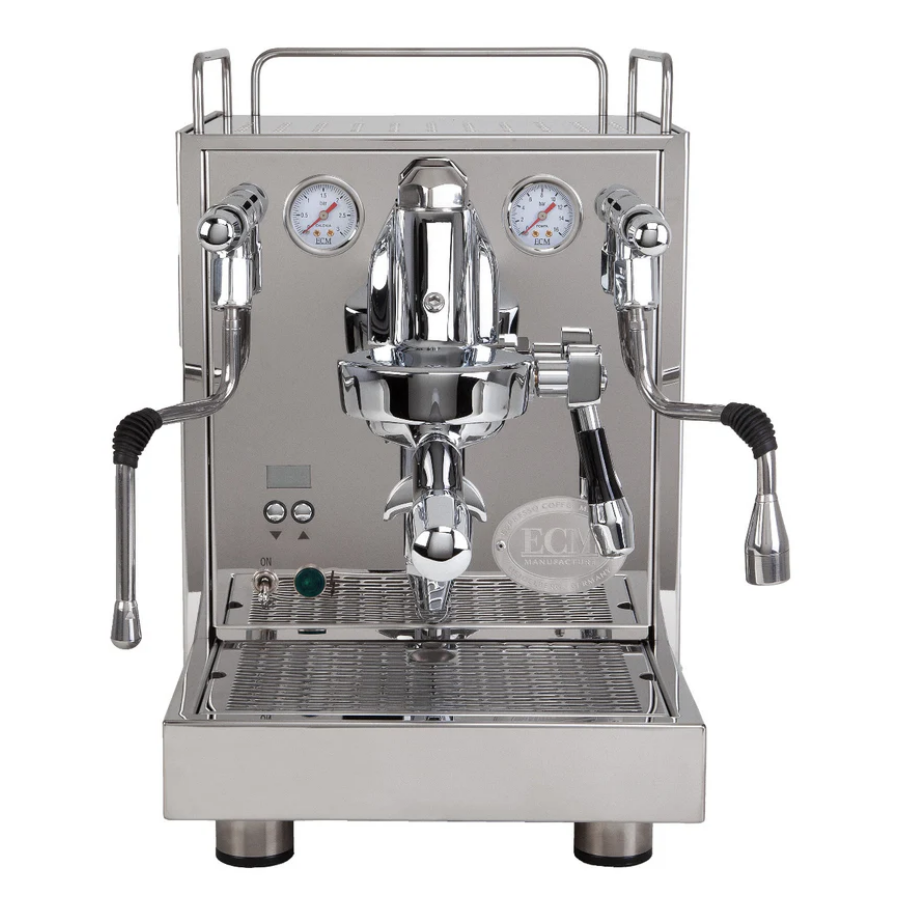

ECM Mechanika MAX – Heat Exchanger Espresso Machine (Rotary Pump)

The ECM Mechanika MAX delivers precision, performance and versatility in a beautifully engineered heat exchanger machine. Designed for home baristas who want commercial-like features, the Mechanika MAX pairs ECM’s advanced Smart HX® real-time temperature control with a quiet rotary pump and intuitive display. Whether you’re brewing espresso or steaming milk, the Mechanika MAX makes consistency easier and quality more reliable.

Key Features

  • Heat Exchanger System with Rotary Pump – brew and steam simultaneously with smooth, quiet, commercial-grade performance.
  • Smart HX® Brew Temperature Control – fine-tune and monitor real-time brew temperature for excellent extraction.
  • Flush Advisor – guided prompts for the ideal cooling flush before brewing.
  • Precisely Adjustable Pre-Infusion – active and passive modes for balanced, sweet extraction.
  • Discreet Multi-Function Display – clean and intuitive screen for key settings and status.
  • Switchable Water Source – use the internal tank or connect to direct water supply easily.
  • Lever Valve Technology – smooth, professional steam and hot water control.
  • Programmable Features – auto on/off times, ECO mode, Clean Mode and filter reminders for easier ownership.

What’s Included

  • 1 × portafilter with single spout
  • 1 × portafilter with double spout
  • 1 × single-shot basket (7 g)
  • 1 × double-shot basket (14 g)
  • 1 × blind filter basket
  • 1 × tamper
  • 1 × cleaning brush
  • 1 × metal hose (1/8″ → 3/8″ BSPP) for direct water connection
  • 1 × user manual

Technical Specifications

System Heat Exchanger dual-circuit
Pump Rotary pump
ECM Brew Group Yes
Water Tank Capacity Approx. 2.8 L
Switchable Water Source Internal tank or direct water supply
Boiler Material Stainless steel
Boiler Volume Approx. 1.9 L
Pump Pressure Gauge Yes
Boiler Pressure Gauge Yes
Display Discreet multi-function display
PID Control Yes
Flush Advisor Yes
Pre-Infusion Modes Active and Passive adjustable pre-infusion
Programmable On/Off Times 2 per day
ECO Mode Yes
Clean Mode (CLn) Yes (group cleaning reminder)
Filter Reminder (FL) Yes (filter change reminder)
Temperature Units Display in °C or °F
Offset Adjustment E11 Yes
Removable Cup Warming Surface Yes
Weight 23.5 kg
Dimensions (W × D × H) 275 × 445 × 405 mm (without portafilter)

Who this machine is perfect for

  • Home baristas seeking advanced temperature control and espresso precision.
  • Milk-drink lovers who value quiet, smooth rotary pump steam performance.
  • Users who want easy switching between tank and fixed water supply.

Note: Pair with a quality espresso grinder to get the most out of the Mechanika MAX’s performance.
